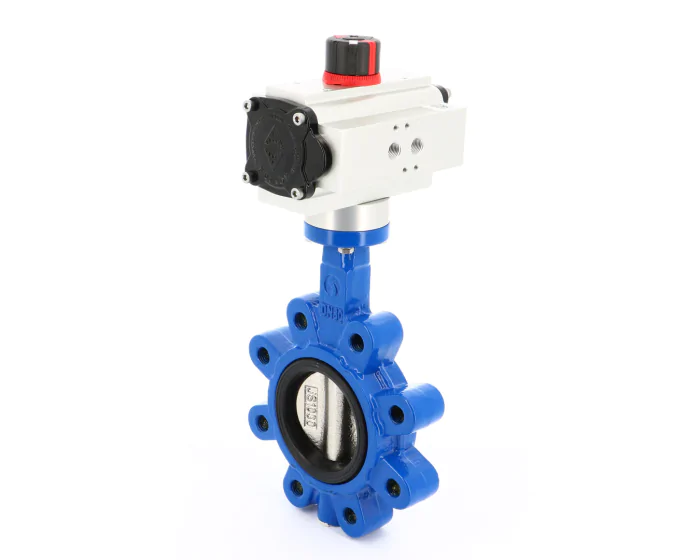

The 1135 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, up to DN300. It is a lug type, PN10/16 and ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel AISI 420 |
| Adjustable limit screws | Yes |
| Lockable | No |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 78.0 |
| Seat | EPDM |
| Body material | Cast iron |
| Number of ways | 2 |
| Disc material | Nickel-plated ductile iron |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 |
| Surface temperature | TX |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Warranty period | 2 years |
| CE | Risk category III |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Cast iron Concentric DN40 - 1''1/2 Double acting | 262503015100 | S1003470 |
€163.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN40 - 1''1/2 Spring return | 262503016101 | S1003471 |
€195.84
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN50 - 2'' Double acting | 262504015100 | S1003472 |
€165.24
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN50 - 2'' Spring return | 262504016101 | S1003473 |
€199.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN65 - 2''1/2 Double acting | 262505015101 | S1003474 |
€188.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN65 - 2''1/2 Spring return | 262505016102 | S1003475 |
€233.41
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN80 - 3'' Double acting | 262506015101 | S1003476 |
€193.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN80 - 3'' Spring return | 262506016102 | S1003477 |
€238.14
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN100 - 4'' Double acting | 262507015102 | S1003478 |
€224.29
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN100 - 4'' Spring return | 262507016103 | S1003479 |
€274.30
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN125 - 5'' Double acting | 262508015102 | S1003480 |
€253.53
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN125 - 5'' Spring return | 262508016104 | S1003481 |
€339.94
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN150 - 6'' Double acting | 262509015103 | S1003482 |
€299.16
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN150 - 6'' Spring return | 262509016105 | S1003483 |
€438.61
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN200 - 8'' Double acting | 262510015104 | S1003484 |
€397.01
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN200 - 8'' Spring return | 262510016106 | S1003485 |
€596.96
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric Double acting DN250 - 10'' | 262511015106 | S1003486 |
€687.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric Spring return DN250 - 10'' | 262511016107 | S1003487 |
€1,163.81
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric Spring return DN300 - 12'' | 262512016108 | S1003488 |
€1,494.30
(excl. btw)
|
add to cart |
